Motivation
Über die Zeit haben sich neue Erkenntnisse herauskristallisiert. Diese sollen hier erfasst und abgewogen werden. Da das NodeMCU Modul nur über eine beschränkte Anzahl von Ein- und Ausgängen verfügt, bietet es sich an, über mögliche Buslösungen nachzudenken. So sollen möglichst alle Sensoren via I2C-Bus betrieben werden.
Mit dem Einsatz eines sehr einfachen Temperaturreglers (2-Punkt Regler) konnten auch schon ein paar Eigenschaften der Regelstrecke gefunden werden. So ist zum Beispiel die Eisbildung beim Kühlmitteleintritt ein Problem, das gelöst werden soll.
Continue reading “Controller Design”
![PlantUML Syntax:</p>

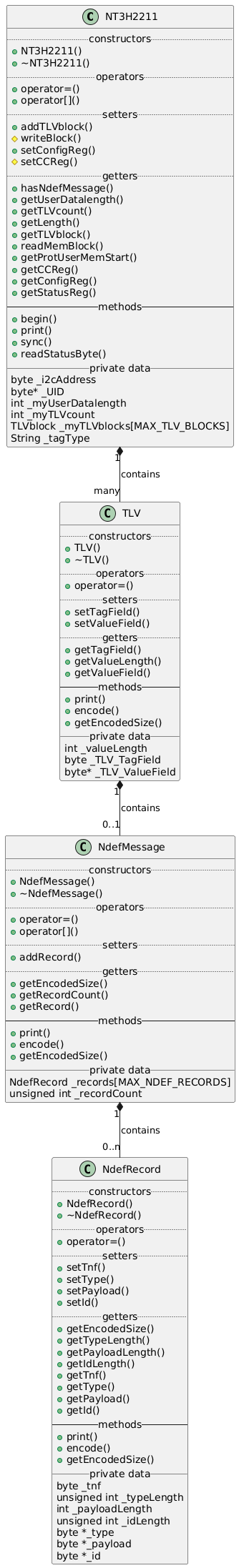

<p>class NT3H2211 {<br />
.. constructors ..<br />
+ NT3H2211()<br />
+ ~NT3H2211()<br />
.. operators ..<br />
+ operator=()<br />
+ operator[]()<br />
.. setters ..<br />
+ addTLVblock()<br />
# writeBlock()<br />
+ setConfigReg()<br />
# setCCReg()<br />
.. getters ..<br />
+ hasNdefMessage()<br />
+ getUserDatalength()<br />
+ getTLVcount()<br />
+ getLength()<br />
+ getTLVblock()<br />
+ readMemBlock()<br />
+ getProtUserMemStart()<br />
+ getCCReg()<br />
+ getConfigReg()<br />
+ getStatusReg()<br />
— methods —<br />
+ begin()<br />
+ print()<br />
+ sync()<br />
+ readStatusByte()<br />
__ private data __<br />
byte _i2cAddress<br />
byte* _UID<br />
int _myUserDatalength<br />
int _myTLVcount<br />
TLVblock _myTLVblocks[MAX_TLV_BLOCKS]<br />
String _tagType<br />
}</p>
<p>class TLV {<br />
.. constructors ..<br />
+ TLV()<br />
+ ~TLV()<br />
.. operators ..<br />
+ operator=()<br />
.. setters ..<br />
+ setTagField()<br />
+ setValueField()<br />
.. getters ..<br />
+ getTagField()<br />
+ getValueLength()<br />
+ getValueField()<br />
— methods —<br />
+ print()<br />
+ encode()<br />
+ getEncodedSize()<br />
__ private data __<br />
int _valueLength<br />
byte _TLV_TagField<br />
byte* _TLV_ValueField<br />
}</p>
<p>class NdefMessage {<br />
.. constructors ..<br />
+ NdefMessage()<br />
+ ~NdefMessage()<br />
.. operators ..<br />
+ operator=()<br />
+ operator[]()<br />
.. setters ..<br />
+ addRecord()<br />
.. getters ..<br />
+ getEncodedSize()<br />
+ getRecordCount()<br />
+ getRecord()<br />
— methods —<br />
+ print()<br />
+ encode()<br />
+ getEncodedSize()<br />
__ private data __<br />
NdefRecord _records[MAX_NDEF_RECORDS]<br />
unsigned int _recordCount<br />
}</p>
<p>class NdefRecord {<br />
.. constructors ..<br />
+ NdefRecord()<br />
+ ~NdefRecord()<br />
.. operators ..<br />
+ operator=()<br />
.. setters ..<br />
+ setTnf()<br />
+ setType()<br />
+ setPayload()<br />
+ setId()<br />
.. getters ..<br />
+ getEncodedSize()<br />
+ getTypeLength()<br />
+ getPayloadLength()<br />
+ getIdLength()<br />
+ getTnf()<br />
+ getType()<br />
+ getPayload()<br />
+ getId()<br />
— methods —<br />
+ print()<br />
+ encode()<br />
+ getEncodedSize()<br />
__ private data __<br />
byte _tnf<br />
unsigned int _typeLength<br />
int _payloadLength<br />
unsigned int _idLength<br />
byte *_type<br />
byte *_payload<br />
byte *_id<br />
}</p>
<p>NT3H2211 “1” *– “many” TLV : contains<br />
TLV “1” *– “0..1” NdefMessage : contains<br />
NdefMessage “1” *– “0..n” NdefRecord : contains<br />](http://www.plantuml.com/plantuml/img/hLLDRnen4Btlhx3efKt4gj1RfHx2HrHK816Gg58KMMPjZDN5HhP9jQsItrv_hBtUbOXQDISyCy_3yvita1KbKWeiDv--3eU30VYTvJae15TQdWejf09vdbt6-liF9dX98eCMHo9H0mtX5uSDqSEZ1okYDGbGXF5cVhyjHV73LD-1dv9fCgh3IuiT2xvZT4Megzl4s0Uc5KrRxP5QOh9R4AKG9UwwgTyf8YT8ev9mglSXQxwp42UkGpplLhUHWYG8ByYXuMG0jrAunYQ_raZ6De6Q3nBYBc6W-gHyejy71wBt0YlGxvlobb367V0eMSrBLRo85FpbKQNjoo2qi2Ua2S3cRG32R6ig0B9XSOMnD1Aun0M0TxD9PXe2UAZQKeHia28BhwwJxgmU5bVVeOdWQ7up_hP-pDRQyAC0QaGtrP5apvctZy6SSuufUTFum-j-wHh411j4hnafSN34FIfF96IwBg0TFAtnxGctMdHdqKo0y4BWQAMfY_2Q_Jep0wVeK_DjzL2iV85J68lDDIIYYec1p-vXn-ClxSJ_RkEA54AU4ROjW4jv-3ZTfTZXpNIrB_HT0PJkq_joEPbUmzLqVBEQ66UUk6AK4mpS66H3hALktUSLSIF_MjjKaNyqBjy5pzfT2UTRL9K2HJlF_bvjswLjvBfNEpdhn847JNZGDWzQytYpcNdhQxxhp4N79_XrEQOFw60PJlVemjqDv_fU29dTeVWNrXlqm8LvIk-0UDLplqsVxRGrObpP7xe6yJ7FpJ7TkmIPfjCRl9TwARdm1m00)
![PlantUML Syntax:<br />

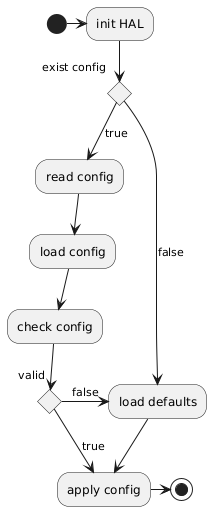

(*) -right-> “init HAL”</p>
<p>if “exist config” then<br />
–>[true] “read config”<br />
–> “load config”<br />
–> “check config”<br />
if “valid” then<br />
->[true] “apply config”<br />
-right-> (*)<br />
else<br />
->[false] “load defaults”<br />
endif<br />
else<br />
->[false] “load defaults”<br />
–> “apply config”<br />
endif<br />](http://www.plantuml.com/plantuml/img/VOvB2i8m48RtESKmAnLoXO8x5zv0kWZDf1aCQKccKczlQXzM19Vpp_S_rE5q19suzQ8hG8uiS3bVKR43f96pGDD5nos2U8eAGElg9ccW6Z2HiUjx_W26xbThF3NtdJXbFqnWkuKMS4irVH-UEne--yhO8b38j7gSAKUzr5foPWYI9nT5oqujw3_mlV2xS_Q-0000)
![PlantUML Syntax:<br />

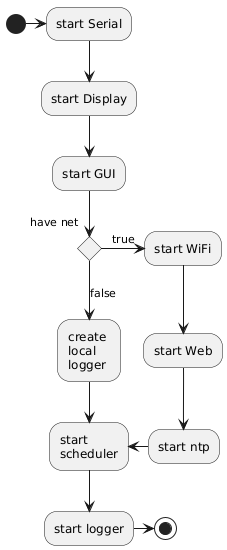

(*) -right-> “start Serial”<br />
–> “start Display”<br />
–> “start GUI”<br />
if “have net” then<br />
-right->[true] “start WiFi”<br />
–> “start Web”<br />
–> “start ntp”<br />
-left-> “start \nscheduler”<br />
else<br />
–>[false] “create \nlocal \nlogger”<br />
–> “start \nscheduler”<br />
endif<br />
–> “start logger”<br />
-right-> (*)<br />](http://www.plantuml.com/plantuml/img/PP1D3e9038NtdAAPbPfm1LT6uzeO5kYYGeTfqencffXuUmSH45mr_Tht-fEjDcl80pTEyosOg1WKJXGOnMG0-GHt71-2hmKzd8yTOGl6uPF0anfGHpv168rB3IrT1qt1UpPzVJ8gwFR7l3w-JCZ-x7VniN9KjqAXgvD46gIbnPIbKLKWL4gjSgzGFh5f-lxPZAMNhzdEJvo4uv_Iqx8t)
![PlantUML Syntax:<br />

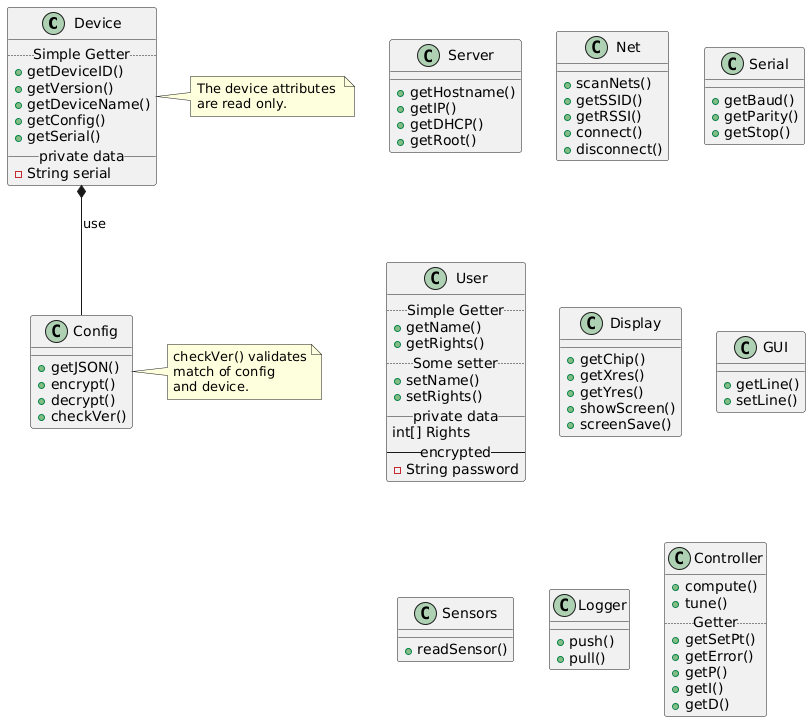

class Device {<br />
